產品細節圖：

產品說明：
1.MD11型數控系統為經濟型簡易的數控系統,它既能滿足機床數控功能,又能滿足精度控制的要求,在結構方面采用直接控制電機的模式,維修方
   面、簡易,做到系統及配件的隨時更換。
2.操作簡易:本系統具備10個工步的編程,可隨時更改不同的尺寸。
3.手動功能:方便調試安裝,用手動模式調式所需尺寸。
4.后擋料退讓功能:此功能為本系統獨有,直接控制電機，技術方面,要達到反復定位的準確性，以及電器的耐用性;
5.參數的設定功能:系統具有參數修改功能，根據機床的機械性能，修改最佳的參數設定,參數包括: 轉動系數、減速距離、慢速距離、慢速時
   間、前后軟限位等。
6.廣泛應用于折彎?rùn)C(jī),單軸控制剪板機后擋位的控制。

1.MD11 CNC system is an economical and simple numerical control system. It can meet the NC function of machine tool and
    meet the requirements of precision control. It adopts the mode of direct control of motor in structure, maintenance and
    simple, and change the system and accessories at any time.
2. simple operation: the system has 10 steps of programming, and can be changed at any time.
3. manual function: easy to debug installation, manual mode adjustment required size.
4., the backstop function: this function is unique to the system, directly controlling the motor, and in terms of technology,
    it is necessary to achieve the accuracy of repeated positioning and the durability of electrical appliances.
5. The setting function of the parameter: the system has the function of parameter modification. According to the mechanical
    performance of the machine tool, the optimum parameters are modified. The parameters include: rotation coefficient, slow
    speed, slow distance, slow time, soft limit of front and rear, etc.
6. is widely used in the bending machine, single axis control plate shearing machine rear gear control.

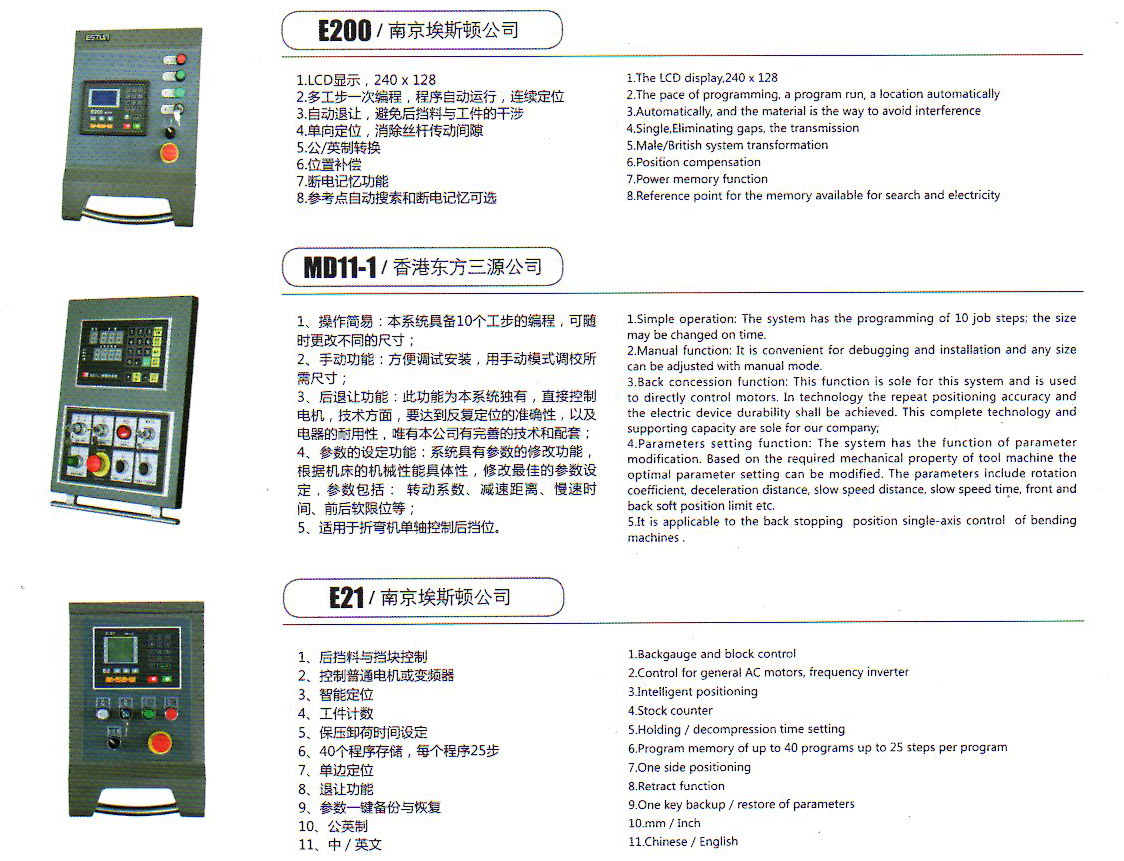

可選配的數控系統：
