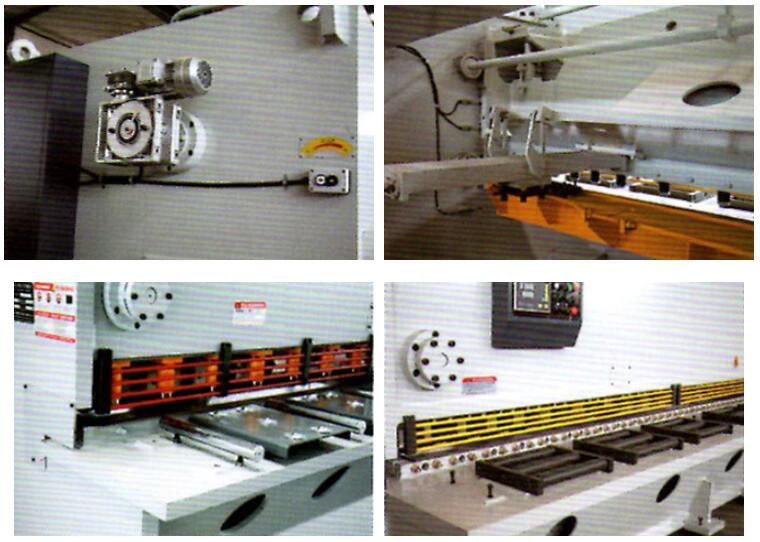

產品細節圖：

產品說明：
1.第二代液壓剪板機;
2.采用鋼板焊接結構,通過振動時效消除應力，,有很好的剛性和穩定性;
3.采用三點支承滾動導軌,消除支承間隙提高剪切質量;
4.刀片間隙用手輪調整、迅速、準確、方便;
5.矩形刀片,四個刃口均可使用,使用壽命長;
6.剪切角可調,減少板料扭曲變形;
7.上刀架采用內傾結構,便于落料,并提高工件的精度;
8.具有分段剪切功能，具有燈光對線的功能;
9.機動后檔料,數字顯示;
10.后托料裝置(可另選擇配置)。

1. second generation hydraulic shear plate machine;
2. steel plate welded structure is adopted to eliminate stress through vibratory stress relief, and has good rigidity and stability.
3. adopt three point supporting rolling guide to eliminate the supporting clearance and improve the shearing quality.
4. the blade gap is adjusted by hand wheel quickly, accurately and conveniently.
5. rectangular blade, four blades can be used, long service life.
6. the shear angle can be adjusted to reduce the distortion of the sheet material.
7. the upper tool carrier adopts an introverted structure to facilitate blanking and improve the accuracy of the workpiece.
8. it has segmented shearing function and has the function of light to line.
9. post gear, digital display;
10. rear support device (alternative configuration).

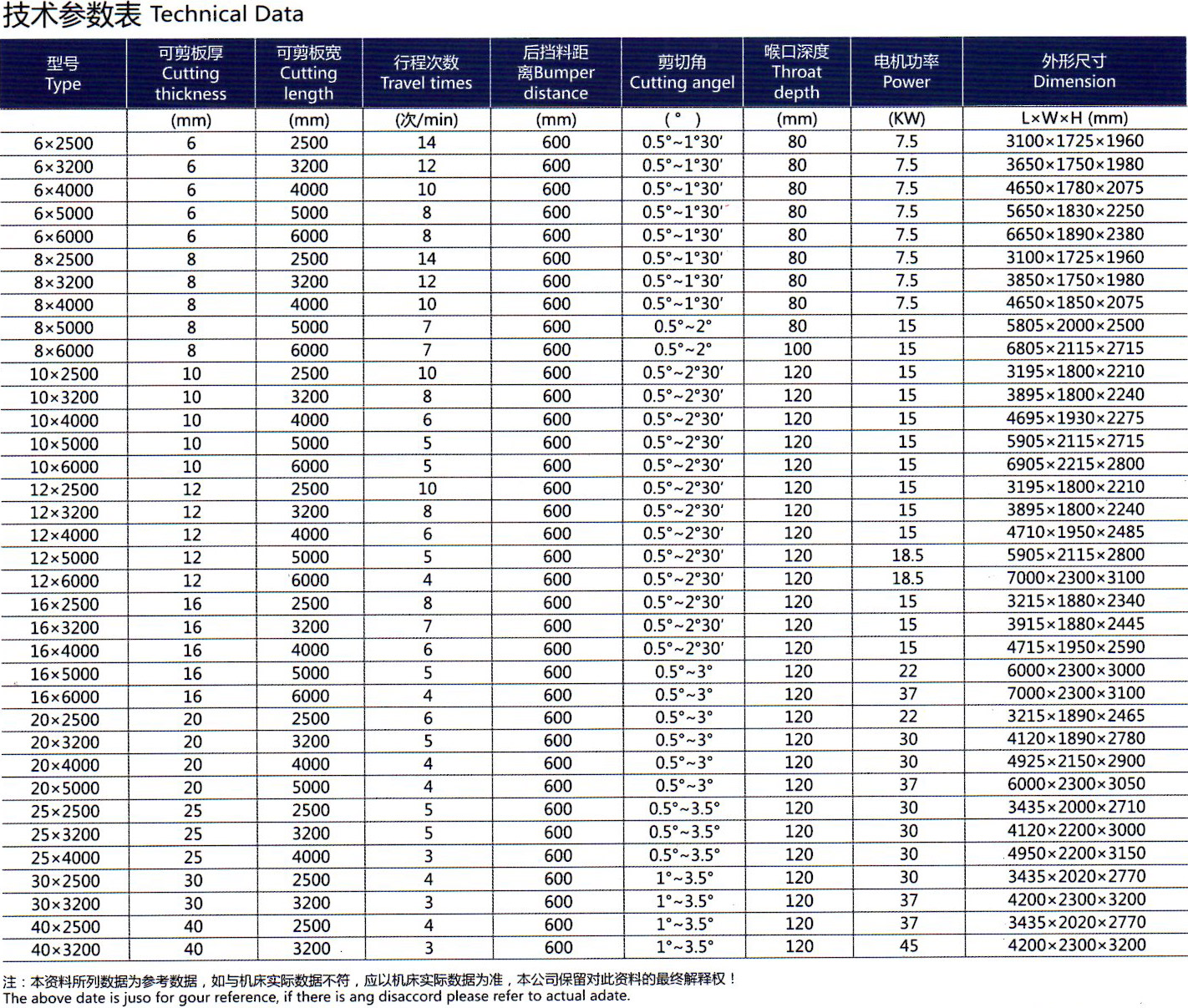

技術參數表：
